Product Description

Pot Magnets (2)

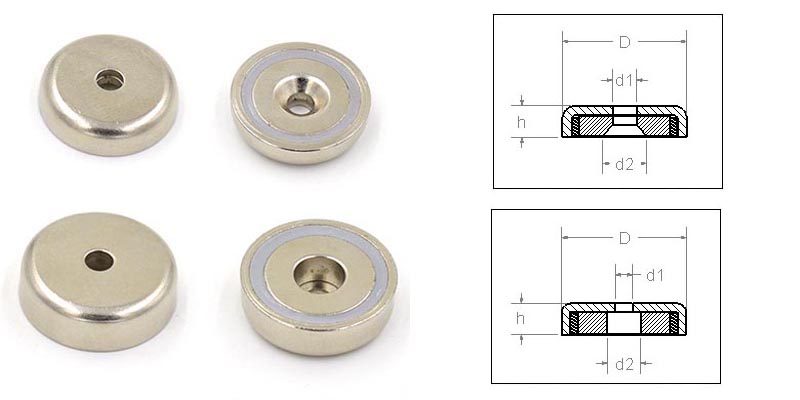

Pot magnets consist of a steel shell with a magnet sunken into one face.
3J international supplies pot magnets which are made with strong Neodymium magnets combined with steel cups.
These Neodymium pot magnets can be supplied with a tapped hole, a countersunk hole, a counter-bored hole, a threaded stud or a threaded collar all for convenient mounting or for hanging a variety of items.
Customized size is also available.

Item Number
Diameter(mm)
   Height(mm)
Plating
Hole Shape
lbs.Pull
XLJ-4321
15.9
4.8
Ni-Plated
tapered hole
13
XLJ-4322
19.1
6.4
Ni-Plated
tapered hole
19
XLJ-4323
25.4
6.4
Ni-Plated
tapered hole
36
XLJ-4324
31.8
9.5
Ni-Plated
tapered hole
58
XLJ-4325
38.1
9.5
Ni-Plated
tapered hole
92
XLJ-4326
44.5
9.5
Ni-Plated
tapered hole
122.5
XLJ-4327
50.8
12.7
Ni-Plated
tapered hole
168
XLJ-4328
15.9
4.8
Ni-Plated
straight hole
10
XLJ-4329
19.1
6.4
Ni-Plated
straight hole
16
XLJ-4330
25.4
6.4
Ni-Plated
straight hole
30
XLJ-4331
31.8
9.5
Ni-Plated
straight hole
52
XLJ-4332
38.1
9.5
Ni-Plated
straight hole
86
XLJ-4333
44.5
9.5
Ni-Plated
straight hole
117.3
XLJ-4334
50.8
12.7
Ni-Plated
straight hole
158

Pot Magnets

Item Number
Diameter(mm)
   Height(mm)
Plating
   Thread Shape
lbs.Pull
XLJ-4335
15.9
4.8
Ni-Plated
#4-40 UNC 2A male threaded
15
XLJ-4336
19.1
6.4
Ni-Plated
 #6-32 UNC 2A male threaded
22
XLJ-4337
25.4
6.4
Ni-Plated
#8-32 UNC 2A male threaded
40
XLJ-4338
31.8
9.5
Ni-Plated
 #10-32 UNF 2A male threaded
61
XLJ-4339
38.1
9.5
Ni-Plated
 #10-32 UNF 2A male threaded
95
XLJ-4340
44.5
9.5
Ni-Plated
1/4"-20 UNC 2A male threaded
125.4
XLJ-4341
12
5
Ni-Plated
M3 Coarse male threaded
7
XLJ-4342
16
5
Ni-Plated
M4 Coarse Male threaded 12.1
XLJ-4343
20
7
Ni-Plated
M4 Coarse male threaded
28
XLJ-4344
25
8
Ni-Plated
M5 Coarse male threaded
48
XLJ-4345
32
8
Ni-Plated
M6 Coarse male threaded
75
XLJ-4346
36
8
Ni-Plated
M6 Coarse male threaded
90
XLJ-4347
42
9
Ni-Plated
M6 Coarse Male threaded
150
XLJ-4348
48
11
Ni-Plated
M8 Coarse male threaded
179
XLJ-4349
15.9
4.8
Ni-Plated
#4-40 UNC 2B female threaded
15
XLJ-4350
19.1
6.4
Ni-Plated
#6-32 UNC 2B female threaded
22
XLJ-4351
25.4
6.4
Ni-Plated
#8-32 UNC 2B female threaded
40
XLJ-4352
31.8
9.5
Ni-Plated
#10-32 UNF 2B female threaded
61
XLJ-4353
38.1
9.5
Ni-Plated
#10-32 UNF 2B female threaded
95
XLJ-4354
12
5
Ni-Plated
M3 Coarse Female threaded stud
5
XLJ-4355
20
7
Ni-Plated
M4 Coarse Female threaded stud
28
XLJ-4356
25
8
Ni-Plated
M5 Coarse Female threaded stud
48
XLJ-4357
32
8
Ni-Plated
M6 Coarse Female threaded stud
75
XLJ-4358
36
8
Ni-Plated
M6 Coarse Female threaded stud
90
XLJ-4359
48
11
Ni-Plated
M8 Coarse Female threaded stud
178

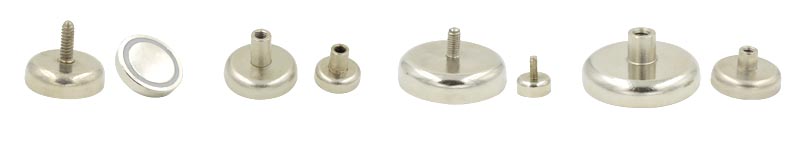

Round Base Magnets-3
